DMX 512 200 Watt RGBW LED Flood Light For Housing Estate
Brief Description
✪ Power: 200 watt.
✪ Using CREE brand RGB / RGBW LED chips with high brightness, good color effect, low heat and long lifespan.
✪ Using Mean Well LED driver which is one of the best driver brand in the world.
✪ Support multiple color changing effects: Flashing, Strobing, Jumping, Fading, Smoothing, etc.
✪ The whole light is outdoor IP66 waterproof.
✪ Support very narrow beam angles from 5 to 120 degree. The irradiation distance is from 30 meters to 150 meters.
✪ Support DMX function and custom wireless solution.
✪ 5 Years warranty.
SKU: CL-FL-JD200
Specifications - 200 watt RGBW LED flood light
DMX 512 200 Watt RGBW LED Flood Light For Housing Estate
| Model No. | Power | Input Voltage | DMX Function |
|---|---|---|---|
| CL-FL-JD200 | 200 Watt | AC100-277V | Support |
| Materials | Working Temp. | Lifespan | Warranty |
| Alu.+Tempered+Glass | -40°C~60°C | 50,000 Hours | 5 Years |
| LED Brand | LED Model | Color Temp. | CRI |
| CREE | High Power | RGB / RGBW | > 80 |
| Driver Brand | PF | IP Rating | Beam Angle |
| Mean Well | > 0.95 | Outdoor IP66, IK08 | 5° - 120° |
| Dimension | Weight | Wireless Solution | Certification |
| Φ380*H230mm | 13KG | Custom | CE/EMC/LVD/RoHS |

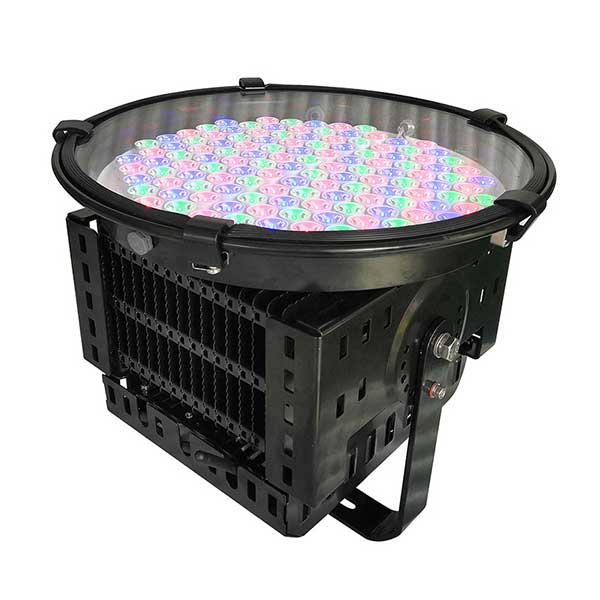

Product Show - 200 watt RGBW LED flood light
• High brightness & comfortable color: Using the best RGB / RGBW LED chips from CREE brand which are with high brightness, low heat, no flicker and comfortable color.
• Extremely long lifespan: Using famous Mean Well LED driver which is super strong, stable and long lifespan. 5 years guaranteed quality.
• Optional RGB / RGBW solution: Can be made with 3 colors of LED chips (R/G/B) or 4 colors of LED chips (R/G/B/W).
• Support DMX function: Built-in DMX512 decoder, it can work with DMX controller directly.
• Support multiple color changing effects: The default program supports a lot of effects such as R/G/B color changing, Flashing, Strobing, Jumping, Fading, Smoothing, etc.
• Custom wireless solution: Save your jobs and costs for the layout of DMX cables.
• Super narrow beam angle: The narrowest beam angle is 5 degree, the widest beam angle is 120 degree.
• Long illuminating distance: Up to 150 meters or longer with high wattages and narrow beam angles.
• Die-casting aluminum body: Excellent cooling performance for heat dissipation.
Color changing effects - 200 watt RGBW LED flood light
Our 200 watt RGBW LED flood light supports many kinds of color changing effects, such as Flashing, Strobing, Jumping, Fading, Smoothing, etc. If working with DMX controller, it can generate more and complicated color changing effects.

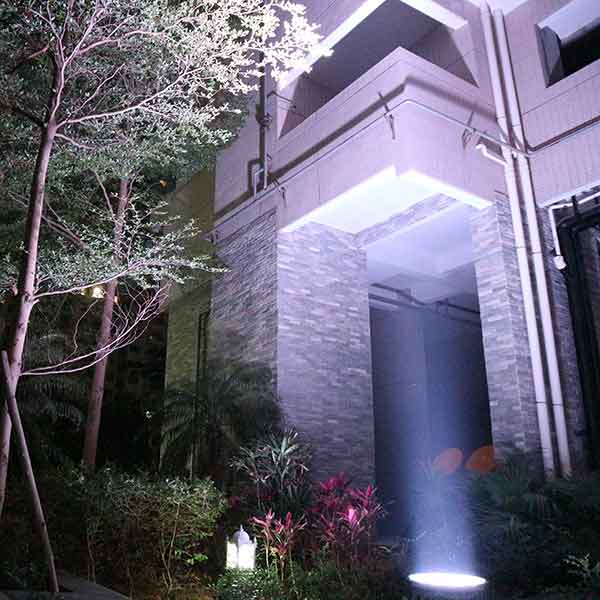

Applications - 200 watt RGBW LED flood light
Our 200 watt RGBW LED flood light is widely used in commercial building, garden, square, bridge, housing estate, landmark building, amusement park, hotel, tower, church, dock, pitch, etc.
DMX512 function - 200 watt RGBW LED flood light
If you want our 200 watt RGBW LED flood light with DMX512 function, you can buy the DMX controller by yourself or from us. Our controller supports SD card programming or real time online programming by computer software.
Installation - 200 watt RGBW LED flood light
There are 3 parts of cables in our 200 watt RGBW LED flood light, one is for power supply, one is for DMX IN, and the last is for DMX OUT. If you use a DMX controller, you can chain all lights with the DMX cables first and connect the first light to the DMX controller as the following picture.
For wireless version, we will add a wireless transmitter to work with the controller to broadcast the signal. And each light will be added with a receiver to get the wireless signal.
Why choose our 200 watt RGBW LED flood light?
1 • Our solution is based on Single Color RGB or RGBW led chips, not 3in1 or 4in1 led chips. 3in1 or 4in1 means the RGB/RGBW colors are integrated in only one led chip, normally the color of this kind of led chip is scattered and will not look very good. But our solution is by mixing multiple Single Color RGB/RGBW led chips, the color of single color led chips is more pure, the output light is more concentrated and the color effect will look better. Our solution is better than most solutions in this market.
2 • Our 200 watt RGBW LED flood light can be made with narrowest 5° or 10° beam angles, these are the beam angles many companies can not make. Our light can illuminate up to 150 meters.
3 • Our 200 watt RGBW LED flood light is self-designed and self-developed, including the DMX512 decoder. When our light has problem, we can position it and fix it quickly. We provide excellent maintenance service.
4 • We are factory, we can customize the product as your requirement. We provide OEM service and competitive factory price.
5 • We have been manufacturing LED lights for about 10 years, we can supply you more reliable lighting products.
Besides our 200 watt RGBW LED flood light, we still manufacture other models and wattages, you can go to our RGB LED Light category page or home page for more information.
Frequently Asked Question
We are a leading LED light manufacturer located in Guangdong. China, You can easily buy our LED lights no matter where you are. Firstly, please send us an inquiry to tell us your requirement on our website or through email, whatsapp or skype, etc. Then we will send you feedback with our proposal, products and quotation. You will be requested to send us the payment after our deal. And when the payment comes we will arrange the production and send you the goods by air or by sea.
Normally our payment term is T/T 30% deposit and balance before shipment. For small amount (such as less than 500 USD) you can pay via Paypal, Western Union or MoneyGram. But for large amount, we will accept bank transfer. We accept different kinds of currency including USD, Euro, GBP, RMB, HKD, YEN, etc.
Normally the delivery time of our sample is 1-3 days and normal order is 5-15 days depending on the actual quantity of your order. We will arrange the shipment by air express(door to door), normal air freight(to your local airport), sea freight(to your local seaport) or some special shipping ways with duties according to the actual situation.
The lifespan of our LED lights can reach 50,000 hours in theory. But the actual lifespan will be a little shorter due to the influences caused by the actual environment temperature, humidity and the using habit of the end user. According to our experience, our LED lights can be used from 6 to 10 years or more.
Normally we provide 3 or 5 yrs warranty. During the warranty period, we will send you new products or new parts for replacement if there are any failures. You can come to us whenever you meet any problems.
